HS1177 Sony Super HAD II CCD FPV Camera (2.1mm lens)

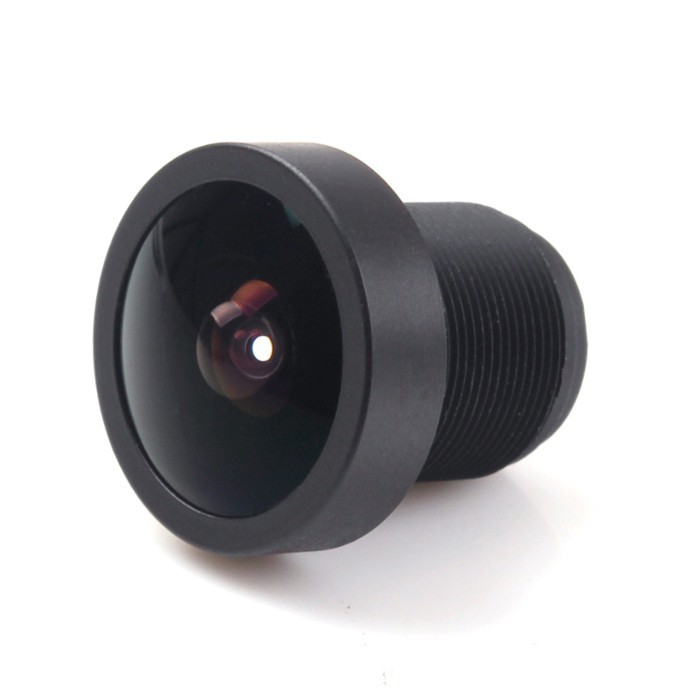

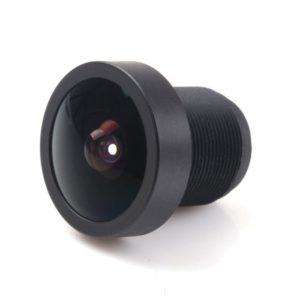

Note: These include a 2.1mm lens as standard, no need to buy an extra lens!

Specifications:

Model	HS1177
CCD	1/3” Sony SUPER HAD II CCD
Pixel	PAL: 976(H) x 494(V);NTSC: 768(H)×494(V)
TV System	PAL (according to country)
Resolution	650TVL(b/w), 600tvl(color)
Synchronization	internal synchronize
Shutter Speed (CCD IRIS)	PAL: 1/50~1/100000 sec; NTSC: 1/60~1/100000 sec
Noise	> 60 (AGC OFF)
Video Out	75ohm, synchronize
Min. Illumination	0.01Lux
Auto Gain	Off/Low/Mid/High
Back Light Compensation (BLC)	Off /Back light compensation/ Strong light suppression
Private shading (PRIVACY)	1~8 private shading area
Motion Detection (MD)	On/ Off (Multi level sensitivity settable)
Auto White Balance	Manual / Auto / Auto track
Mirror	Horizontal Mirror optional
Negative	Positive / Negative optional
Color to B&W	Auto
DNR	2DNR
WDR	D-WDR
Day / Night Shift	Auto/ Color/ B&W
Menu (OSD)	English menu
White Dot Repair	Support
Image Adjustment	Support
Camera Title	Support
Power Requirement	DC5V~22V
Working Temperature	-10 C ~ 50 C
Working Humidity	20~80%
Storage Temperature	-40 C ~ 60 C
Storage Humidity	20~95%
Dimensions(mm)	25X25(W*L)
Power Consumption	70mA
