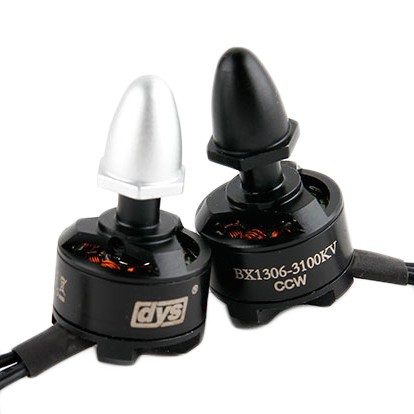

DYS 1306-3600kv CW/CCW Motors

The DYS BX series of motors are a balance of quality, performance and price. All BX motors come with integrated one piece CNC motor housing and prop shaft making for a light, strong and compact design. The BX motors come packaged as a set of 2 motors, one CW rotation and one CCW rotation with matching prop nuts. Also included with the set is 2mm bullet connectors and matching mounting hardware. The 1306-3100kv multirotor motor is ideal for small 180~220mm multirotors and 4~5 inch props.

Specifications

• RPM/V: 3100kv
• Dimensions: 18 × 15mm
• Shaft: 2mm main shaft and 5mm prop shaft
• Voltage: 2S~3S (7.4v to 11.1v)
• Weight: 13g
• Max Current: 8A
• ESC: 6amp to 10amp
• Motor Mount Holes: M2 x 12mm

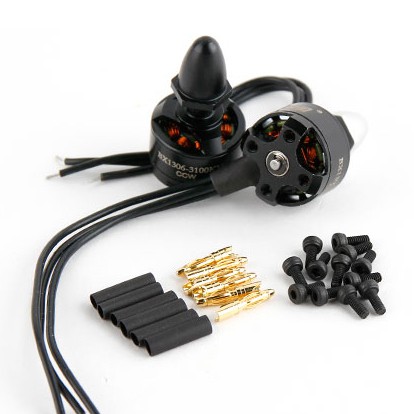

Includes

• 2x motors 1 CW, 1 CCW
• 2x prop nuts
• Bullet conectors 2mm
• Mounting Hardware
