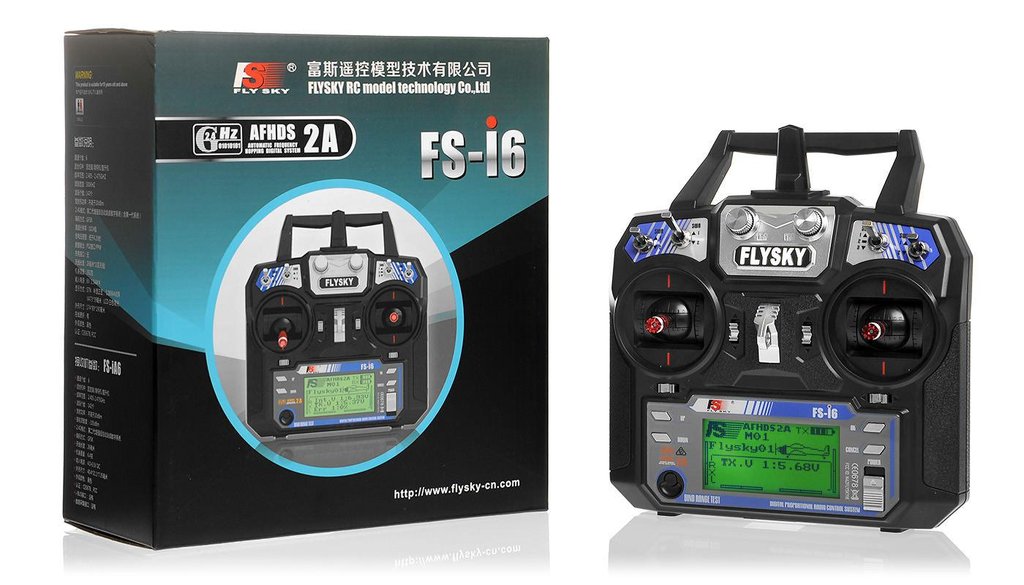

FlySky FS-i6 2.4Ghz 6CH AFHDS Transmitter

Description

FEATURES:
This radio system uses a high gain and high quality multi directional antenna,it covers the whole frequency band. Associated with a high sensitivity receiver,this radio system guarantees a jamming free long range radio transmission
Each transmitter has a unique ID,when binding with a receiver,the receiver saves that unique ID and can accepts only data from the unique transmitter.this avoids picking another transmitter signal and dramatically increase interference immunity and safety.
This radio system uses low power electronic components and sensitive receiver chip.The RF modulation uses intermittent signal thus reducing even more power consumption.
AFHDS2A system has the automatic identification function,which can switch automatically current mode between single-way communication mode and two-way communication mode according to the customer needs.
AFHDS2A has built-in multiple channel coding and error-correction,which improve the stability of the communication,reduce the error ratio and extend the reliable transmission distance.

FS-i6 Specifications (TRANSMITTER):

• Channels: 6 Channels
• Model Type: Glider/Heli/Airplane
• RF Range: 2.40-2.48GHz
• Bandwidth: 500KHz
• Band: 142
• RF Power: Less Than 20dBm
• 2.4ghz System: AFHDS 2A and AFHDS
• Code Type: GFSK
• Sensitivity: 1024
• Low Voltage Warning: less than 4.2V
• DSC Port: PS2;Output:PPM
• Charger Port: No
• ANT length: 26mm*2(dual antenna)
• Weight:392g
• Power: 6V 1.5AA*4
• Display mode: Transflective STN positive type, 128*64 dot matrix VA73*39mm,white backlight.
• Size: 174x89x190mm
• On-line update:yes
• Color: Black
• Certificate: CE0678,FCC
• Model Memories: 20
• Channel Order: Aileron-CH1, Elevator-CH2, Throttle-CH3, Rudder-CH4,Ch 5 & 6 open to assignment to other functions.

FS-iA6 Specifications (RECEIVER):

• Channels: 6 Channels
• Model Type: Fixed-wing/Glider/Airplane
• RF Range: 2.40-2.48GHz
• Bandwidth: 500KHz
• Band: 142
• RF power:less than 20dBm
• RF.receiver sensitivity:-105dBm
• 2.4ghz System: AFHDS 2A
• Code Type: GFSK
• ANT length: 26mm
• Weight:6.4g
• Power:4.0-6.5V
• Size: 40.4×21.1×7.35mm
• Color: Black
• Certificate: CE,FCC
• i-BUS port: NO
• Data Acquisition port:NO

INCLUDES:

• 1 x FS-i6 transmitter
• 1 x FS-iA6 Receiver
• 1 x Manual
