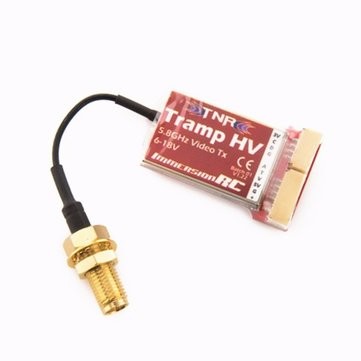

ImmersionRC Tramp HV 6-18V 5.8GHz Video Transmitter

The ImmersionRC Tramp HV is a tiny video transmitter with a huge set of features! Weighing in at only 4g, it promises to solve the majority of issues and delays that race events experience.

Pit mode: This mode only transmits a tiny amount of power on a frequency to allow for quad setup at a race event without disrupting other pilots.

Touch n Race: Transmitters are placed in Race mode on arrival at a race and remain in that mode until the end of the event. Race directors can define the frequency and power output of the transmitter in only 5 seconds before a race.

LapRF Compatible: LapRF uses the energy emitted by the 5.8GHz transmitter on the quadcopter to trigger a lap timer sensor.

Anti-Glitch: Anti-Glitch is a new technology which allows video transmitters to power up cleanly on the assigned channel without affecting neighbouring channels.

$59.00

Available on backorder

Quantity
Compare

Description

Specification:

Dimensions: L=32mm x W=14mm x H=5mm
Weight: 4g (Tx only, without SMA cable)
Power Output: Programmable, 1mW to > 600mW
Channels: 48 standard, arbitrary using race wand
RF Impedance: 50 ohms
RF Connector: U.FL
AV Connector: JST-GH, 6 pin, locking
TNR Connector: JST-GH, 4 pin, locking
Audio: Mono, Subcarriers on 6.0 and 6.5MHz (cloned)
Modulation: FM, Audio and Video
Pit Frequency: User/Race Organizer Definable
Video Impedance: 75 ohms
Power Requirements: 2s-4s HV Lipo
Power Consumption:  ~4W max. @ 600mW, ~1.9W @ 200mW

Features:

– Smallest direct LiPo powered VTx in the business.
– TNR Touch-free wand control
– Traditional button + LED control of frequency and power
– 1mW -> 600mW linear power control
– All 40 standard channels
– Built-in thermal protection
– Factory power normalization
– Glitch-Free frequency changes
– Micro-power pit mode
– Additional channels for race events (Race Wand only)
– Retail regional locking without opening package
Package includes:
1 x ImmersionRC Tramp HV  Video Transmitter
