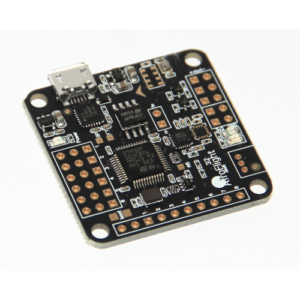

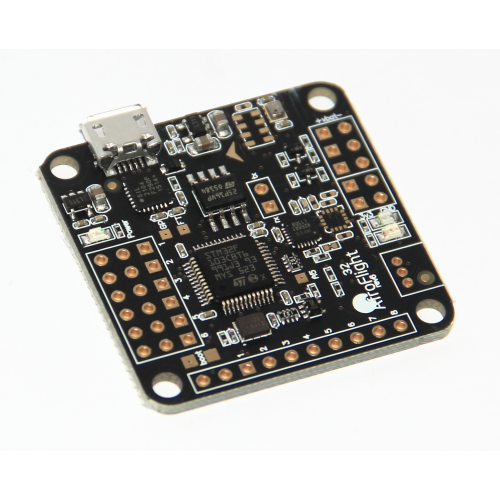

Naze32 Rev6 Acro

Note: This is the “Acro” version and does not have the MS5611 barometer and magnetometer.

• STM32F103CBT6 32-bit ARM Cortex M3 processor (72MHz, 3.3V)
• Invensense MPU6500 MEMS accelerometer + gyro
• BMP280 Barometer
• Built-in Micro-USB for programming/firmware update
• 36x36mm size, ~5 gram weight w/o headers
• Made in JAPAN
• Shipping with 16V input capable voltage regulators

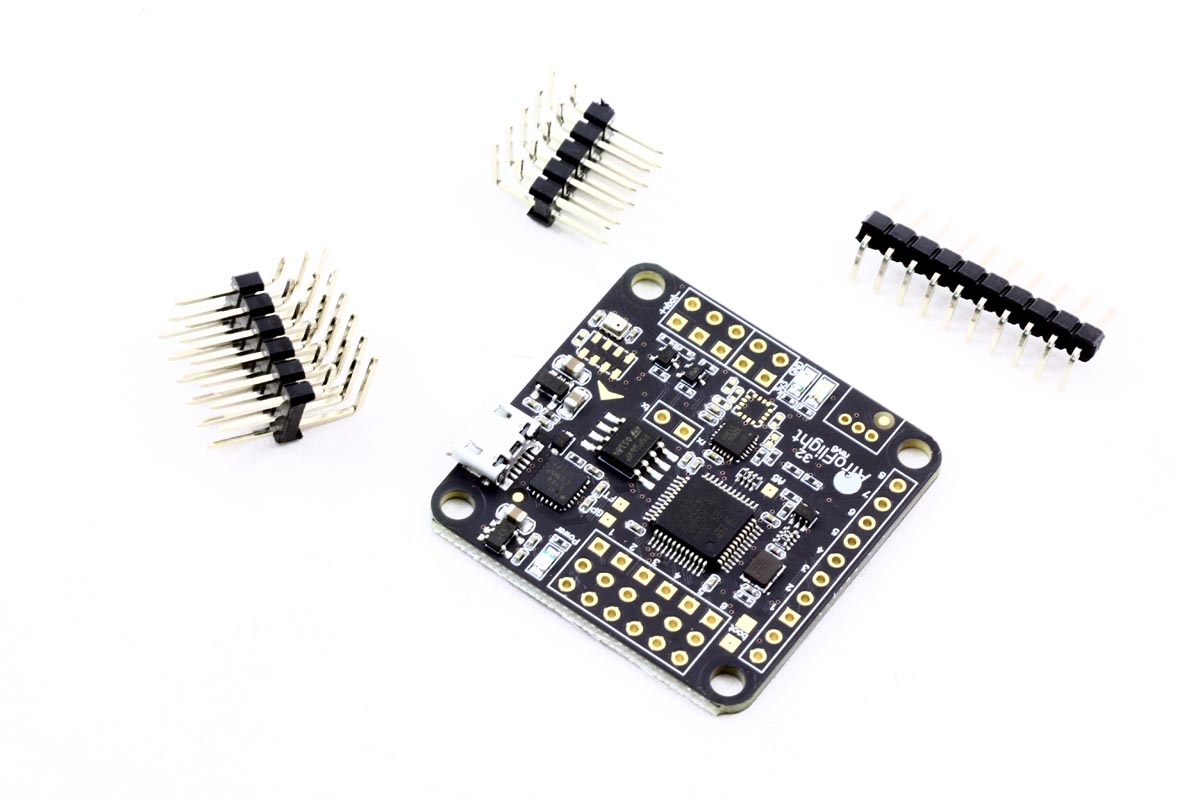

These come with pin headers (straight and right angle options), NOT soldered to the board.

Features:

• USB on right side
• PPM/PWM input as through-hole
• 3.3V, I2C on standard-size headers
• Fully pinout compatible with rev5 accessories (OSDoge etc)
• SBUS Inverter
• Spectrum satellite
• MPU6500
• Sonar pads w/resistors added for direct connection to 5V sonar
• All extra pads (FT, GP, A5) on top, only sonar on bottom
• BMP280 barometer
• 16mbit flash

Specs

• 36×36 mm (30.5mm Mounting)
• 5.3 grams (no headers, 7.3 grams with)
• 2000 degrees/second 3-axis MEMS gyro + accelerometer (MPU6500)
• Input voltage: Max 16V on input rail and up to 35V 6s on the voltage sense line

Configuration software – Chrome Baseflight Configurator (preferred)
